We offer cost-effective, environmentally friendly equipment for each stage of the prototyping process, making this PCB prototype machine ideal for design verification, structuring, and board assembly.The prototype system in this machine enables customers to manufacture fully functional boards with ease in a short period of time through drilling/milling/engraving/routing, 4 mil track and trace machining, etc.

This advanced prototype machine can use the Auto Tool Change system to change up to 12 tools automatically during production, on the machine, which lowers set-up times, and enables unattended production.

It has a 42,000 RPM motor on the spindle which allows shorter machining time and high accuracy. Through software, the spindle speed can be programmed and allows the 4 mil track and trace machining, which is why this prototype solution of a machine can be applied to the precise PCB manufacturing.

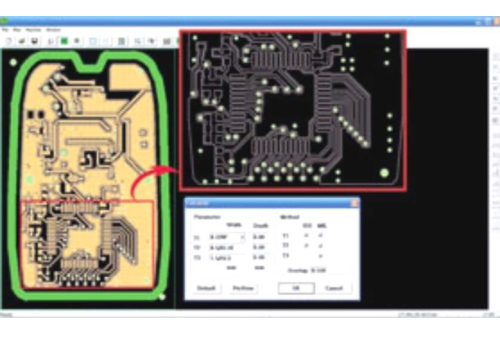

PCAM Software: PCAM is compatible with all Windows systems and accepts standard RS274D/X format Gerber files exported from Layout Software like: P-Cad / Allegro / Protel / ALTIUM Designer / Power PCB (PADS) / ORCAD, etc. This makes the PCB prototype machine suitable for various electronic design workflows.

We offer cost-effective, environmentally friendly equipment for each stage of the prototyping process, from design verification to structuring and board assembly. It allows customers to produce fully functioning boards quickly and easily by drilling/milling/engraving/routing, mil track and trace.
Auto Tool Change is up to 12 tools are automatically changed during production. This reduces set-up times and allows for unattended production.
42,000 rpm spindle motor ensures the shortest machining times and highest accuracy. It can be control spindle speed by software and apply to 4 mil track and trace.
PCAM Software: PCAM is compatible with all windows system and accepts standard RS274D/X format Gerber files exported from Layout Software like : P-Cad/ allegro / protel /ALTIUM Designer/ Power PCB(PADS)/ORCAD, etc
