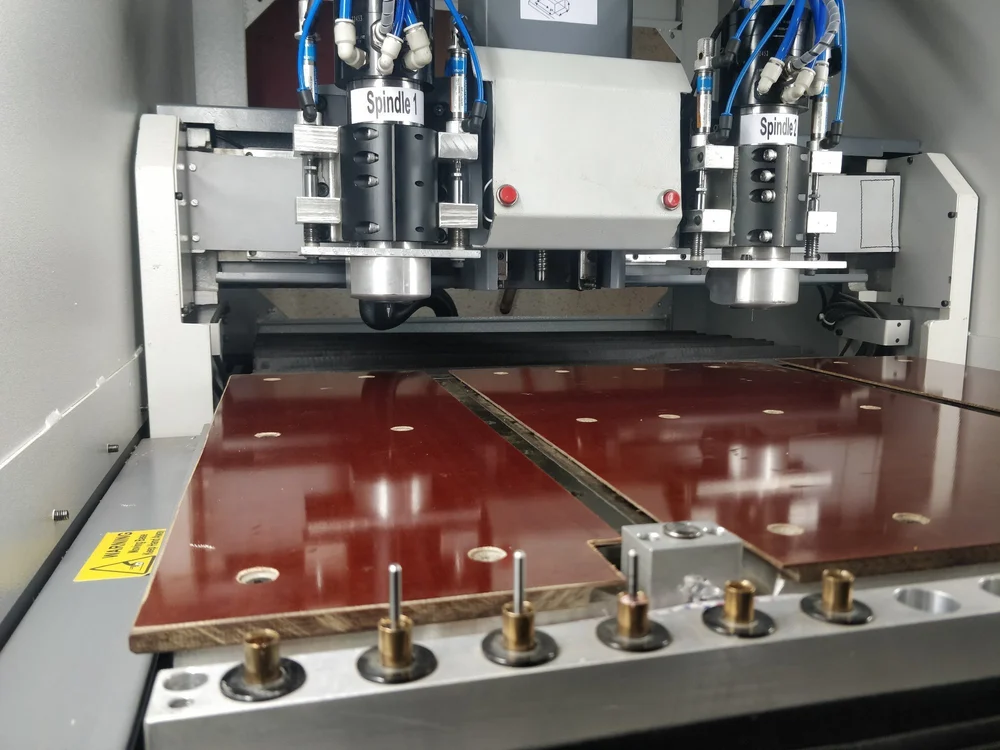

Automatic FR4 Substrate PCB Drilling Machine with Auto-Tool Changer (ATC) Double Spindle
Electric & Electronics
•
Pune, Maharashtra
Raw Material Contract
Handover Training
Machinery Loan / EMI
1 / 3
Model Type: Turnkey Plant
Full industrial machinery, site commissioning, tooling, and trial production batches ready for commercial deployment.
CapEx & Financial Viability
Base CapEx
₹950,000
Setup Outlay
Net Margin
32.0%
Est. Net Return
Payback
12 Mo.
Break-Even Target
Working Capital
₹150,000
Cushion Buffer
Rated Output Capacity: 100/hr
Single Shift Model
Installation, Logistics & Recurring Costs
| Cost Element | Classification | Estimated Value |
|---|---|---|
| Installation & Commissioning | On-site foundation & engineering setup | Free (Included) |
| Transportation & Freight Charges | Transit logistics to buyer destination | On Actuals |
| Est. Monthly Raw Material Input | Input inventory per single shift run | Varies by Grade |
| Annual Maintenance Contract (AMC) | Post-warranty comprehensive support | Optional Support |
| Monthly Operator & Labor Payroll | Combined wage for required operators | Est. Based on Region |
| Guarantee / Warranty Period | Manufacturer direct terms | 1 Year Comprehensive Warranty |
Infrastructure & Plant Floor Footprint
400 sq.ft
Minimum Floor Area
32.00 KW
3-Phase Industrial
4 Personnel
Workforce / Shift
Raw Material Supplier Tie-Up Included
The seller facilitates direct mill/wholesaler pricing contracts for ongoing production runs.
On-Site Operator Technical Training
Vendor technical personnel oversee complete machine commissioning and operator handover.
Licensing & Government Subsidies
Statutory Clearances Required:
GST Registration
MSME / Udyam Certificate
Plant Blueprint & Deliverables Summary
Spindle Count 2 spindle
Max Drill Size 8 mm
Table Size 600x500 mm
Tool Change System Automatic Tool Change
Spindle Speed As Required
Axis Count 3 axis
Automation Grade Automatic
Body Material MS
Drilling Speed 130 holes/min
Country of Origin Made in India
Table Top Model for Beginners in PCB manufacturing Industry. Work Area : 300 mm x 300 mm. Highly suitable for non aluminium PCB drilling & routing.
Max Drill Size 8 mm
Table Size 600x500 mm
Tool Change System Automatic Tool Change
Spindle Speed As Required
Axis Count 3 axis
Automation Grade Automatic
Body Material MS
Drilling Speed 130 holes/min
Country of Origin Made in India
Table Top Model for Beginners in PCB manufacturing Industry. Work Area : 300 mm x 300 mm. Highly suitable for non aluminium PCB drilling & routing.
ANYWORKS READY
Active Quotation
EMI / Machinery Loan
Available
Supported: Approved NBFCs & Banks
Request Full Blueprint & Demo
Direct manufacturer contact & NDA protected.
H
Hrishikesh Govind Angole
Pune • Verified Plant Supplier
