Roller Veneer Dryer Advance Model with Auto Feeder

Recycling • Kolkata, West Bengal

Raw Material Contract Handover Training Machinery Loan / EMI

Roller Veneer Dryer Advance Model with Auto Feeder - Slide 1

Click to Zoom

Roller Veneer Dryer Advance Model with Auto Feeder - Slide 2

Click to Zoom

1 / 3

Model Type: Turnkey Plant

Complete Production Line

Full industrial machinery, site commissioning, tooling, and trial production batches ready for commercial deployment.

CapEx & Financial Viability

Base CapEx

₹500,000

Setup Outlay

Net Margin

34.0%

Est. Net Return

Payback

20 Mo.

Break-Even Target

Working Capital

₹2,000,000

Cushion Buffer

Rated Output Capacity: 1500 kg/hr Single Shift Model

Installation, Logistics & Recurring Costs

Cost Element	Classification	Estimated Value
Installation & Commissioning	On-site foundation & engineering setup	Free (Included)
Transportation & Freight Charges	Transit logistics to buyer destination	On Actuals
Est. Monthly Raw Material Input	Input inventory per single shift run	Varies by Grade
Annual Maintenance Contract (AMC)	Post-warranty comprehensive support	Optional Support
Monthly Operator & Labor Payroll	Combined wage for required operators	Est. Based on Region
Guarantee / Warranty Period	Manufacturer direct terms	1 Year Comprehensive Warranty

Infrastructure & Plant Floor Footprint

1,200 sq.ft

Minimum Floor Area

25.00 KW

3-Phase Industrial

12 Personnel

Workforce / Shift

Raw Material Supplier Tie-Up Included The seller facilitates direct mill/wholesaler pricing contracts for ongoing production runs.

On-Site Operator Technical Training Vendor technical personnel oversee complete machine commissioning and operator handover.

Licensing & Government Subsidies

Statutory Clearances Required:

GST Registration MSME / Udyam Certificate

Plant Blueprint & Deliverables Summary

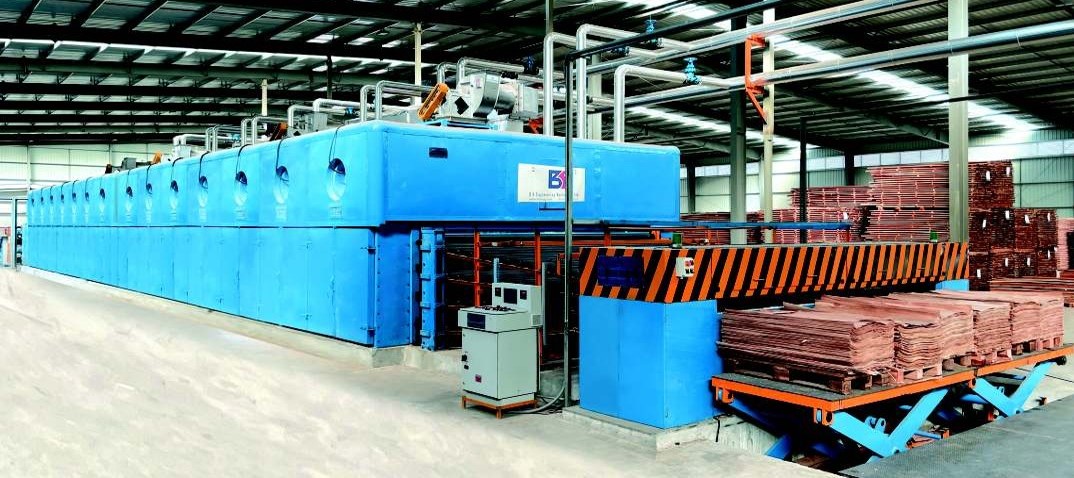

A Roller Veneer Dryer is a machine used in plywood production to dry thin layers of wood veneer. It uses heated rollers to efficiently remove moisture from the veneer, ensuring proper bonding and reducing warping during the plywood manufacturing process. This dryer increases production efficiency and improves the quality of the final product.

Auto Feeder for Veneer Feeding With Scissor Lift.

Both Side Jet Box Opening Model for Even Drying.

Open Zone ( 1000 MM ) with Blower after 10th Heating Section for better Cooling Effect on Veneer .

Cooling Section Double ( 2000 MM ) for Better Cooling Effect on Veneer Surface .

All 4 Deck Operation by Individual 4 no Geared Motor & 4 no A.C Drive .

All 4 Deck Conveyor Speed will Auto Increase & Decrease based on Avg Temp by PLC & HMI .

PLC & HMI Based Dryer Control Panel with Auto – Manual Operations .

Auto release of Humidity Stops Loss of Hot Air and Release Only the Excess Humidity.

Discharge Roller Conveyor & Belt Conveyor for Collection of Dry Veneer at a Single Point.
