Packaged Sewage Treatment Plants (STP)

Back to Ready Marketplace

Turnkey Plant 24 Months Payback

Packaged Sewage Treatment Plants (STP)

Environmental • Surat, Gujarat

Raw Material Contract Handover Training Machinery Loan / EMI

Packaged Sewage Treatment Plants (STP) - Slide 1

Click to Zoom

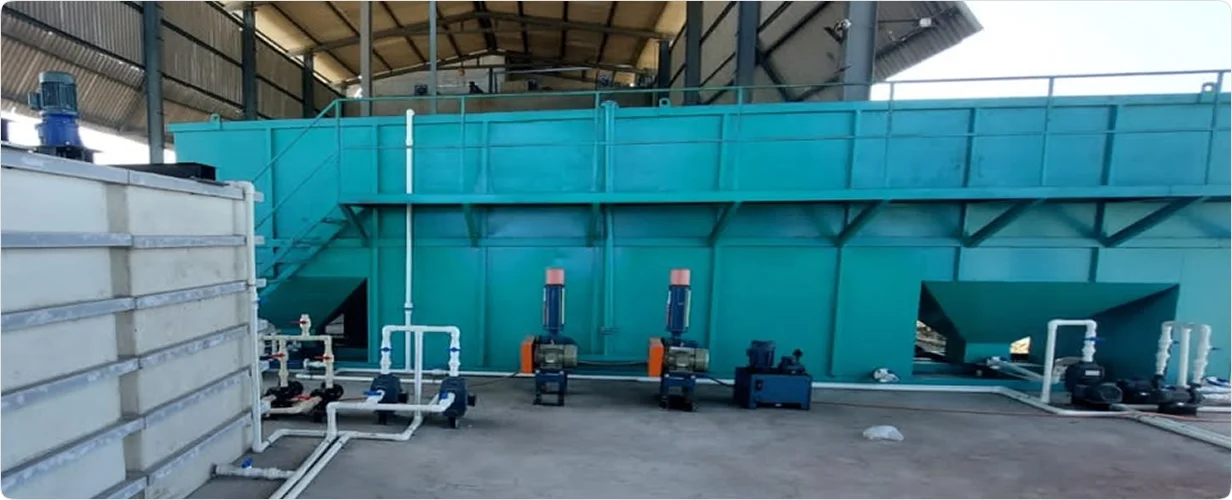

Packaged Sewage Treatment Plants (STP) - Slide 2

Click to Zoom

1 / 2

Model Type: Turnkey Plant

Complete Production Line

Full industrial machinery, site commissioning, tooling, and trial production batches ready for commercial deployment.

CapEx & Financial Viability

Base CapEx

₹2,500,000

Setup Outlay

Net Margin

18.0%

Est. Net Return

Payback

24 Mo.

Break-Even Target

Working Capital

₹500,000

Cushion Buffer

Rated Output Capacity: 5 KLD to 200 KLD Single Shift Model

Installation, Logistics & Recurring Costs

Cost Element	Classification	Estimated Value
Installation & Commissioning	On-site foundation & engineering setup	Free (Included)
Transportation & Freight Charges	Transit logistics to buyer destination	On Actuals
Est. Monthly Raw Material Input	Input inventory per single shift run	Varies by Grade
Annual Maintenance Contract (AMC)	Post-warranty comprehensive support	Optional Support
Monthly Operator & Labor Payroll	Combined wage for required operators	Est. Based on Region
Guarantee / Warranty Period	Manufacturer direct terms	1 Year Comprehensive Warranty

Infrastructure & Plant Floor Footprint

800 sq.ft

Minimum Floor Area

34.00 KW

3-Phase Industrial

6 Personnel

Workforce / Shift

Raw Material Supplier Tie-Up Included The seller facilitates direct mill/wholesaler pricing contracts for ongoing production runs.

On-Site Operator Technical Training Vendor technical personnel oversee complete machine commissioning and operator handover.

Licensing & Government Subsidies

Statutory Clearances Required:

GST Registration MSME / Udyam Certificate

Plant Blueprint & Deliverables Summary

We offer a complete range of Packaged Wastewater Treatment Plants designed using ASP, MBBR, SBR & MBR technologies. These systems are tailored to meet your specific requirements and are available in standard capacities:

📏 Standard Capacities Available:

5 KLD, 10 KLD, 20 KLD, 30 KLD, 40 KLD, 50 KLD, 60 KLD, 75 KLD, 90 KLD, 100 KLD, 150 KLD, 200 KLD

🔧 Design & Technical Features:

Material of Construction: Mild Steel Epoxy Painted (5 mm thick) or FRP 2-3 mm
Corrosion Resistance: Epoxy coating of 150–200 microns or FRP body
Smart Flow Control: Advanced level sensor algorithm ensures precision
Standby Arrangements: For uninterrupted performance
Water Reuse: Treated water can be reused for gardening or toilet flushing
📦 What’s Included in the Package?

Component

Process Tanks
Process Piping
Feed Pump (Self-Priming, Non-Clogging)
Twin Lobe Roots Blower
Return Sludge Pump (Non-Clogging)
Filter Feed Pump (Self-Priming)
Fine Bubble Diffusers
Pressure Sand Filter (PSF)
Activated Carbon Filter (ACF)
Disinfection Unit
PSF & ACF Auto Backwash
Control Panel
Specification / Make

As per design
UPVC, As per design
Lubi/CRI/CG
Akash/ USHA / TMVT / AI / Everest
Lubi/CRI/CG
Lubi/CRI/CG
EPDM tube/circular, Jetage / Techpro / Standard
Polyglass / FRP / Vessel, Pentair / Avantura
Iodine number 1000, Certified (ACF grade)
UV or Sodium Hypochlorite – as per design
Optional
Semi-Automatic IP45 / fully automatic

ANYWORKS READY

Active Quotation

EMI / Machinery Loan Available

Supported: Approved NBFCs & Banks
